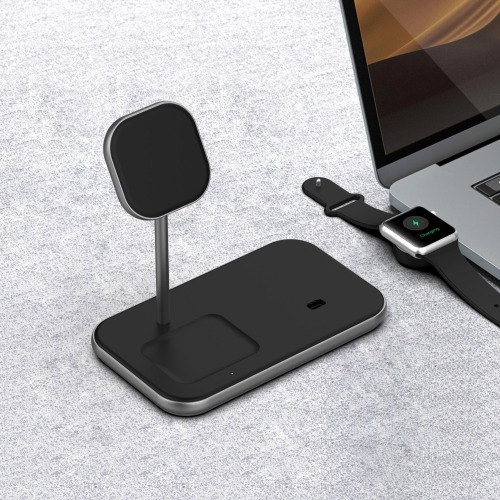

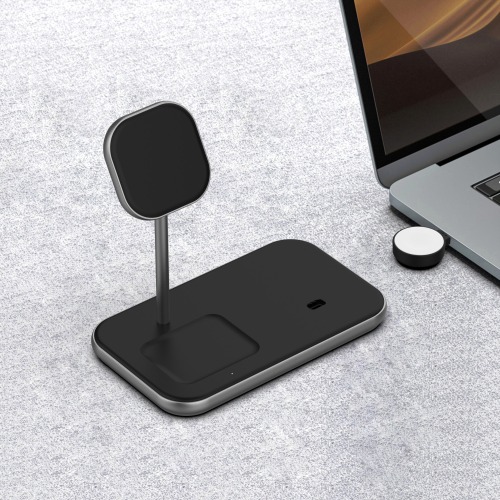

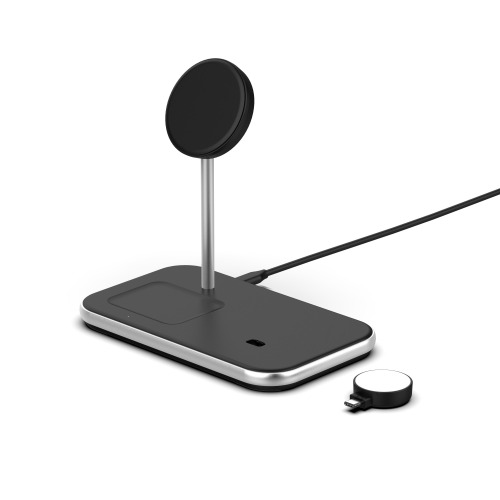

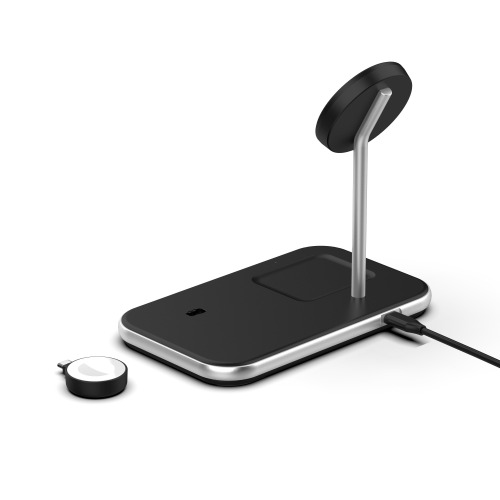

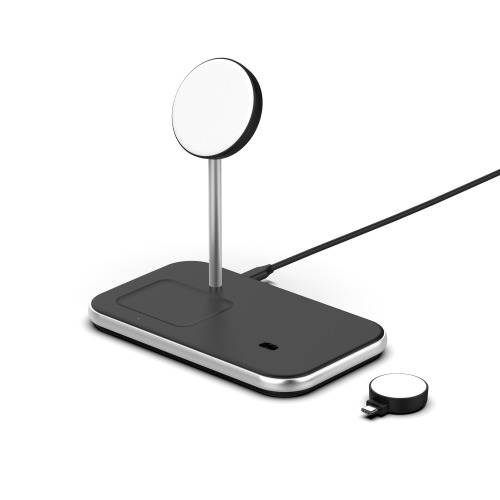

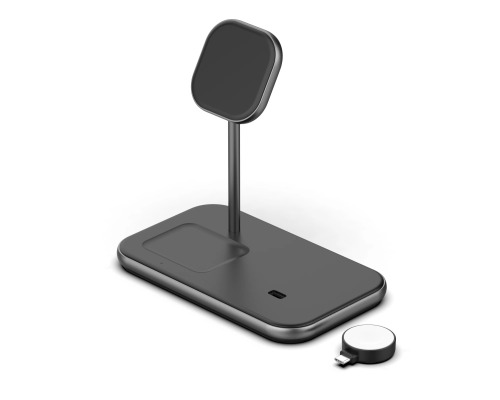

3 in 1 Magnetic Wireless Charger Station

Description

1. Product description
1. This product is a type-c input magnetic wireless charger, the charging efficiency could reach up to 82%; With built-in LED lights indicating status. Compatible with fast charging function mobile phones, Support 12V fast charging mode (requires a charger that supports PD/QC2.0 and above).
1.2 7.5W fast charging for iPhone, 5W for AirPods and Apple Watch.
2. Specifications
2.1 Max rating

Spec	Symbol	Rating value	Unit
Working temperature	Ta	-10_+40	°C
Storage temperature	Tstg	0_+40	°C
Storage humidity	Tstr	<95%	RH
Supply voltage	Vcc	14	V
Supply current	I	4	A

2.2 Nominal parameter
Input：DC 9V/3A(Max)；12V/3A(Max)

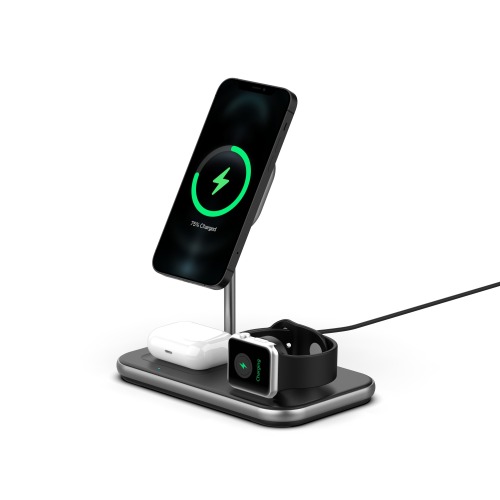

Output（TX1 is the magnetic wireless charging stand transmitting terminal, TX2 is the wireless transmitting terminal and TX3 is the Apple Watch wireless transmitting terminal：

If the adapter was QC quick charger, the output power is TX1 /7.5W, TX2/5W, TX3/2.5w
If the adapter was PD quick charger，this wireless charger will firstly do a Handshake Protocol connection with the adapter to recognize its Voltage and current and adjust the power consumption correspondingly，Here below please find the power consumption：

PD Adapter input		Wireless Max output
Voltage	Wat	Wat--TX1/TX2/TX3
9/12	<30	7.5W/5W/3W
9/12	>=30	15W/5W/5W

2.3 Electric parameters
Test condition: Environment temperature 25°C

	Test condition	Rated value	Minimum value	Max.	unit
Standby mode Consumption	Vcc=5V	12	11	15	mW
Working frequency	Regulate load and distance	/	110	205	KHz
Transfer efficiency		75	60	82	%
Output Voltage	5W output	5	4	6	V
Output Voltage-a	7.5W output, PD/QC2.0 adapter or above(Output consumption≥15W	7.5	5	10	V
Output Voltage-b	10W output PD/QC2.0 adapter or above(Output consumption≥15W	9	5	10	V
Output Voltage-c	15W output- PD/QC2.0 adapter or above(Output consumption≥20W	12	9	14	V
Power output-5W	maximum current output	5	4	7	W
Power output -7.5W	maximum current output	7.5	6	9	W
Power output -10W	maximum current output	10	8	12	W
Power output -15W	maximum current output	15	12	18	W
Working distance	maximum current output	5	3	8	mm
Tem. protection	PCBA Tem.	70	55	85	℃
Standby mode Consumption	Input: 9V	10	9.5	11	V
Working frequency	Input: 12V	13	12.5	14	V
Transfer efficiency	Failures removed and self-recovery	Yes	/	/	/
