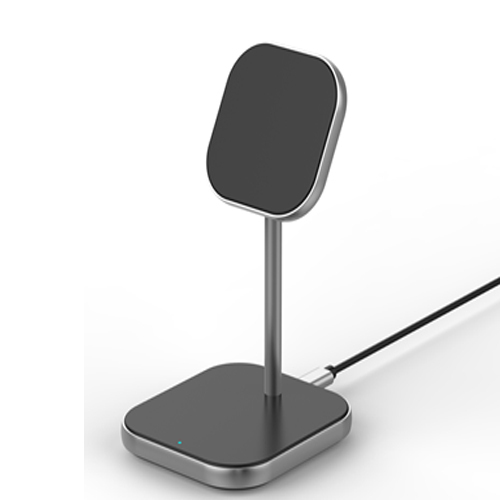

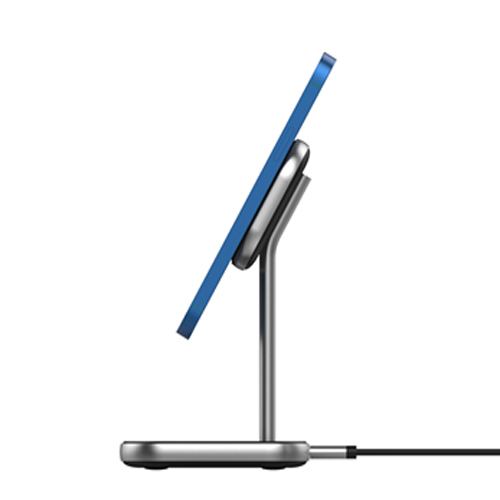

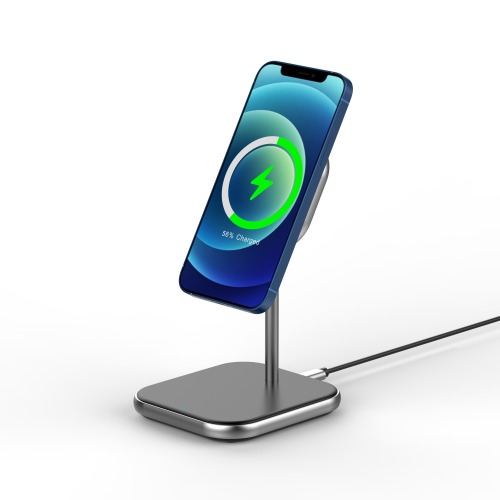

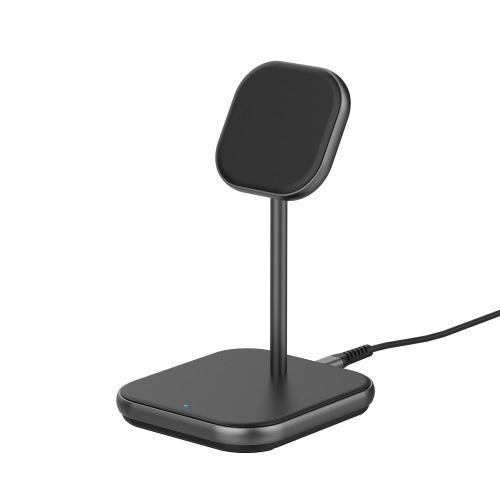

Magnetic Wireless Charger Stand

Item No.: #RST68
Magnetic Wireless charger for your iPhone 12
Wireless output: 7.5W for iPhone12 or iPhone13
Description
Description
1. Product Introduction:
1.1. This product is a type-c input magnetic wireless charger, the charging efficiency could reach up to 82%; With built-in LED lights indicating status. Compatible with fast charging function mobile phones, Support 12V fast charging mode (requires a charger that supports PD/QC2.0 and above).
Reference InputDC 5V2A/9V2A/12V1.67A
Nominal Output5W5V/9V/12V input/7.5W9V/12V input/10W9V/12V/Input/15W12V Input)。
1.2. It supports Sam sung 10W quick charge, Apple 7.5W quick charge and other quick charger mobile phones,

2. Specifications
2.1 Max rating
Spec Symbol Rating value Unit
Working temperature Ta -10+40 °C
Storage temperature Tstg 0+40 °C
Storage humidity Tstr <95% RH
Supply voltage Vcc 15 V
Supply current I 2 A
2.2. Electric parameters
Test condition: Environment temperature 25°C

  Test condition Rated value Minimum value Max. unit
Standby mode Consumption Vcc=5V 12 11 15 mW
Working frequency Regulate load and distance / 110 205 KHz
Transfer efficiency   75 60 82 %
Output Voltage  5W output 5 4 6 V
Output Voltage-a 7.5W output, PD/QC2.0 adapter or above(Output consumption≥15W 7.5 5 10 V
Output Voltage-b 10W output PD/QC2.0 adapter or above(Output consumption≥15W 9 5 10 V
Output Voltage-c 15W output- PD/QC2.0 adapter or above(Output consumption≥20W 12 9 14 V
Power output-5W maximum current output 5 4 7 W
Power output -7.5W maximum current output 7.5 6 9 W
Power output -10W maximum current output 10 8 12 W
Power output -15W maximum current output 15 12 18 W
Working distance maximum current output 5 3 8 mm
Tem. protection PCBA Tem. 70 55 85 °C

2.3 Other parameters
Magnetic sheet size 45*1mm
Coil type Qi A11 Standard monolayer coil

2.4 3.5 LED Status indicator
Color/Status Stand by Charging Full charged FOD DPM Errors Not Quick charging mode
/ Red light lightning form Blue light breathing light Blue light lightning form Red and blue light shining alternately / Red and blue light shining alternately No light
NotesBlue light indicator only for Sam sung phones, Blue light breathing mode for other kinds of phones.
3. Magnetic force
More than 0.7kg
