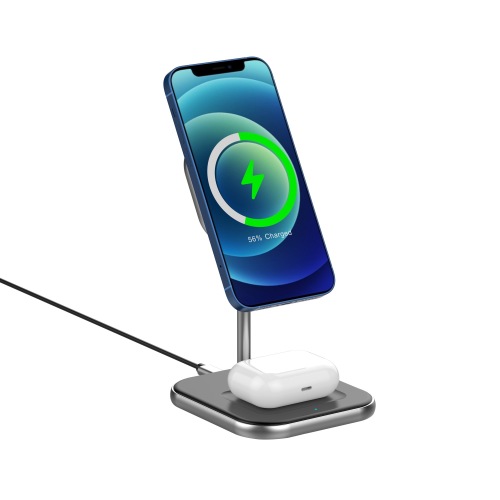

Charge your mobile phone and AirPods Pro simultaneously
Material: Plastic + metal

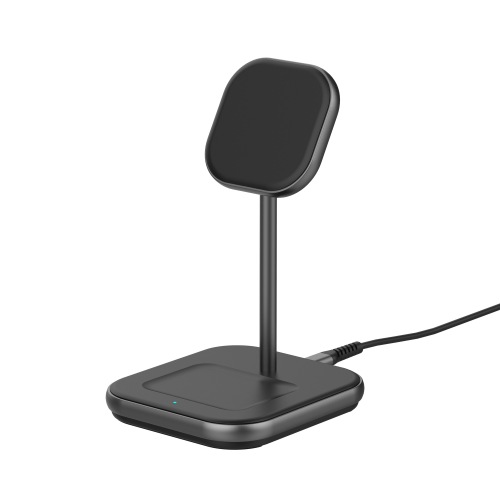

Magnetic Wireless charger for your iPhone 12, 12 Mini, 12 Pro, 12 Pro Max
Wireless output: 7.5W for iPhone12, 15W for android mobile phones, 5W for AirPods Pro
This product is a type-c input magnetic wireless charger, the charging efficiency could reach up to 82%; With built-in LED lights indicating status. Compatible with fast charging function mobile phones, Support 12V fast charging mode (requires a charger that supports PD/QC2.0 and above).
1. Product description
This product is a type-c input magnetic wireless charger, the charging efficiency could reach up to 82%; With built-in LED lights indicating status. Compatible with fast charging function mobile phones, Support 12V fast charging mode (requires a charger that supports PD/QC2.0 and above).
2.2. 7.5W fast charging for iPhone, 5W for AirPods.
2. Specifications
2.1 Max rating
| Spec |
Symbol |
Rating value |
Unit |
| Working temperature |
Ta |
-10_+40 |
°C |
| Storage temperature |
Tstg |
0_+40 |
°C |
| Storage humidity |
Tstr |
<95% |
RH |
| Supply voltage |
Vcc |
13 |
V |
| Supply current |
I |
2 |
A |
2.2 Nominal parameter
Input：DC 9V/3A(Max)；12V/3A(Max)
Output（TX1 is the magnetic wireless charging stand transmitting terminal while TX2 is the wireless transmitting terminal：
a、If the adapter was QC quick charger, the output power is：TX1/7.5W+TX2/5W；
b、If the adapter was PD quick charger，this wireless charger will firstly do a Handshake Protocol connection with the adapter to recognize its Voltage and current and adjust the power consumption correspondingly，Here below please find the power consumption：
| PD Adapter input |
Wireless Max output |
| Voltage |
Wat |
Wat--TX1/TX2 |
| 9/12 |
<30 |
7.5W/5W |
| 9/12 |
>=30 |
15W/5W |
2.3 Electric parameters
Test condition: Environment temperature 25°C
| |
Test condition |
Rated value |
Minimum value |
Max. |
unit |
| Standby mode Consumption |
Vcc=5V |
12 |
11 |
15 |
mW |
| Working frequency |
Regulate load and distance |
/ |
110 |
205 |
KHz |
| Transfer efficiency |
|
75 |
60 |
82 |
% |
| Output Voltage |
5W output |
5 |
4 |
6 |
V |
| Output Voltage-a |
7.5W output, PD/QC2.0 adapter or above(Output consumption≥15W |
7.5 |
5 |
10 |
V |
| Output Voltage-b |
10W output PD/QC2.0 adapter or above(Output consumption≥15W |
9 |
5 |
10 |
V |
| Output Voltage-c |
15W output- PD/QC2.0 adapter or above(Output consumption≥20W |
12 |
9 |
14 |
V |
| Power output-5W |
maximum current output |
5 |
4 |
7 |
W |
| Power output -7.5W |
maximum current output |
7.5 |
6 |
9 |
W |
| Power output -10W |
maximum current output |
10 |
8 |
12 |
W |
| Power output -15W |
maximum current output |
15 |
12 |
18 |
W |
| Working distance |
maximum current output |
5 |
3 |
8 |
mm |
| Tem. protection |
PCBA Tem. |
70 |
55 |
85 |
℃ |
| Input overvoltage protection |
Input: 9V |
10 |
9.5 |
11 |
V |
| Input overvoltage protection |
Input: 12V |
13 |
12.5 |
14 |
V |
| Output Overcurrent and short-circuit protection |
Failures removed and self-recovery |
Yes |
/ |
/ |
/ |
2.4 Other parameters
| Magnetic sheet size |
45*2mm |
| Coil type |
Qi A11 Standard monolayer coil |
2.5 LED Status indicator
AirPods charging indicator only
| Color/Status |
Stand by |
Charging |
Full charged |
FOD |
DPM |
Errors |
Not Quick charging mode |
| / |
Red and blue light shining 3 times alternately, then blue light lightning Form |
Red light breathing |
Blue light Lightning Form |
Red and blue light shining alternately |
/ |
Red and blue light shining alternately |
/ |
3. Magnetic force
More than 0.7kg
